Miniature UAV drive
Small Footprint - Big Performance

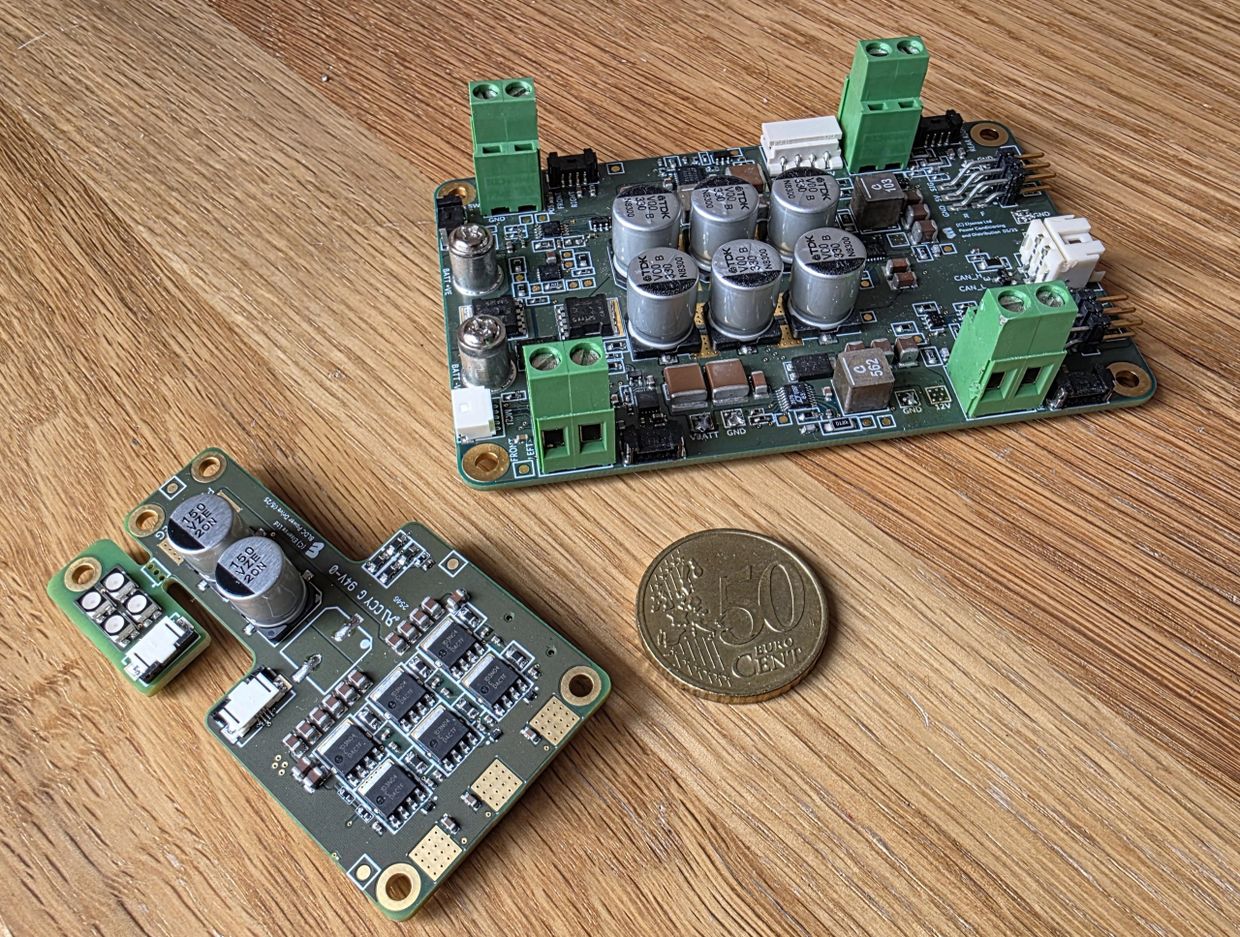

The UAV drive board (Front Left) is capable of 30A motor phase output at 33V supply and is controlled by either PWM or CAN input signals. It even has an RGB indication LED attached via a ribbon cable.
It is designed to work in conjunction with the Power Distribution board (Back Right) - Simply connect the battery and flight controller outputs to this board, and it will distribute power and signals to each of four connected drives and protect them against voltage transients, inrush current, and reverse polarity.
The board also has 3 auxiliary power outputs: 5V@8A, 9V@3A and 12V@3A to power external peripheral circuitry such as flight controller and cameras.
